SHERA Planks
SHERA plank is a unique fibre cement composite of natural fibres bonded tightly in a high-grade silicate structure. This autoclaved wood-grain siding acquires impressive toughness, yet remains flexible and dimensionally stable. It is a cellulose cement plank that contains absolutely no asbestos fibre, no fibre glass fibres or formaldehyde.
Benefits of SHERA Plank
SHERA Planks are:
- Weather resistant
- Immune to water damage
- Fire resistant
- Provides sound insulation
- Shatter resistant
- Low shrinkage
- Flexible
- High degree of workability
- Termite resistant
| Physical Properties | |
|---|---|
| Thickness Tolerance | +6% |
| Density | 1350 + 50 kg/m3 |
| Flexural Strength (wet avg) | > 7 MPa |
| Modulus of Elasticity (wet) | 3000 MPa |
| Water Absorption | < 35% |
| Moisture Content | < 15% |
| Water Tightness | Pass |
| pH Value | 7-8 |
| Thermal Conductivity | 0.15 W/m.K |
| Acoustic Insulation | STC = 30 dB (6 mm single board) STC = 50 - 60 dB (10 mm composite wall) |
| Moisture Movement | + 0.04% |
| Length Change Due to Water Absorption | < 0.10% |
| Fire Resistance Properties | |
| Ignitibility | Pass |
| Fire Propagation Index | I = 0.4 |
| Surface Spread of Flame | Class 1 |
| Reaction to Fire Classification | A1 |
| Combustibility | Non-Combustible |
| Durability Properties | |
| Freeze / Thaw Resistance | < 0.75 |
| Warm Water Resistance | < 0.75 |
| Heat / Rain Resistance | No cracks or structural alteration |
| Soak / Dry Resistance | < 0.75 |
| Product Classification | Category A |
SHERA Plank Categories
SHERA Plank comes in two main categories:

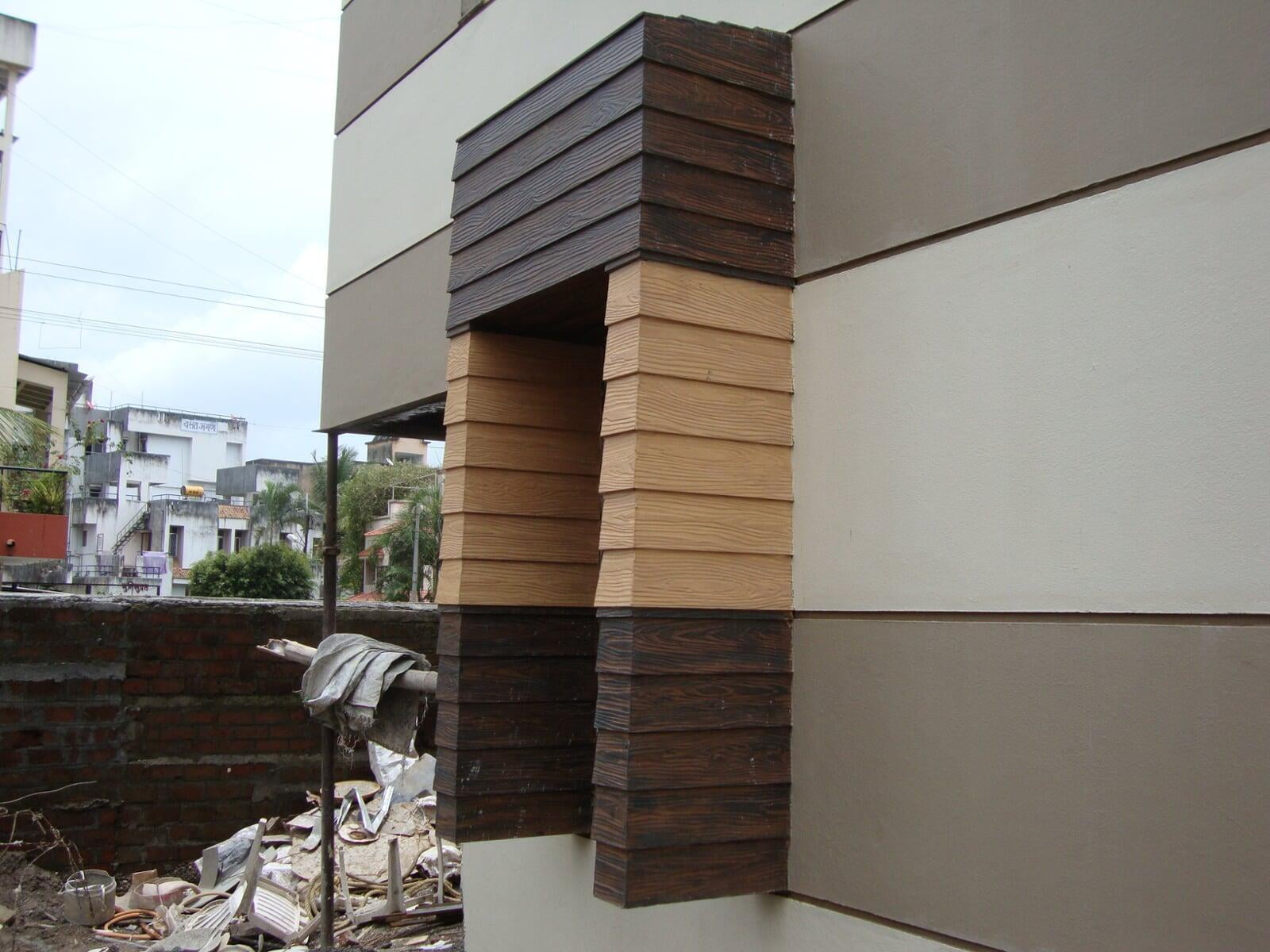

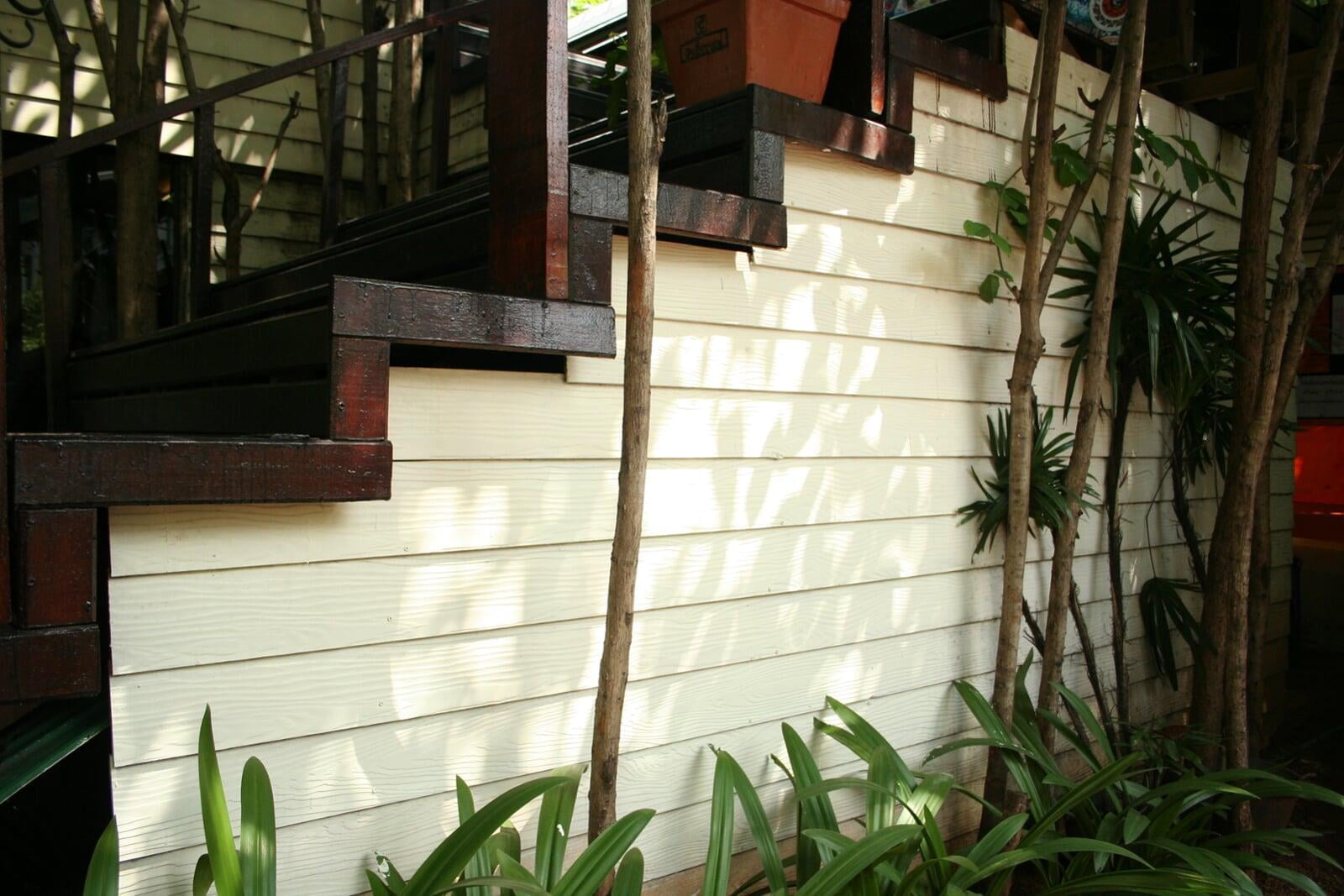

Square cut edge (overlapping style)

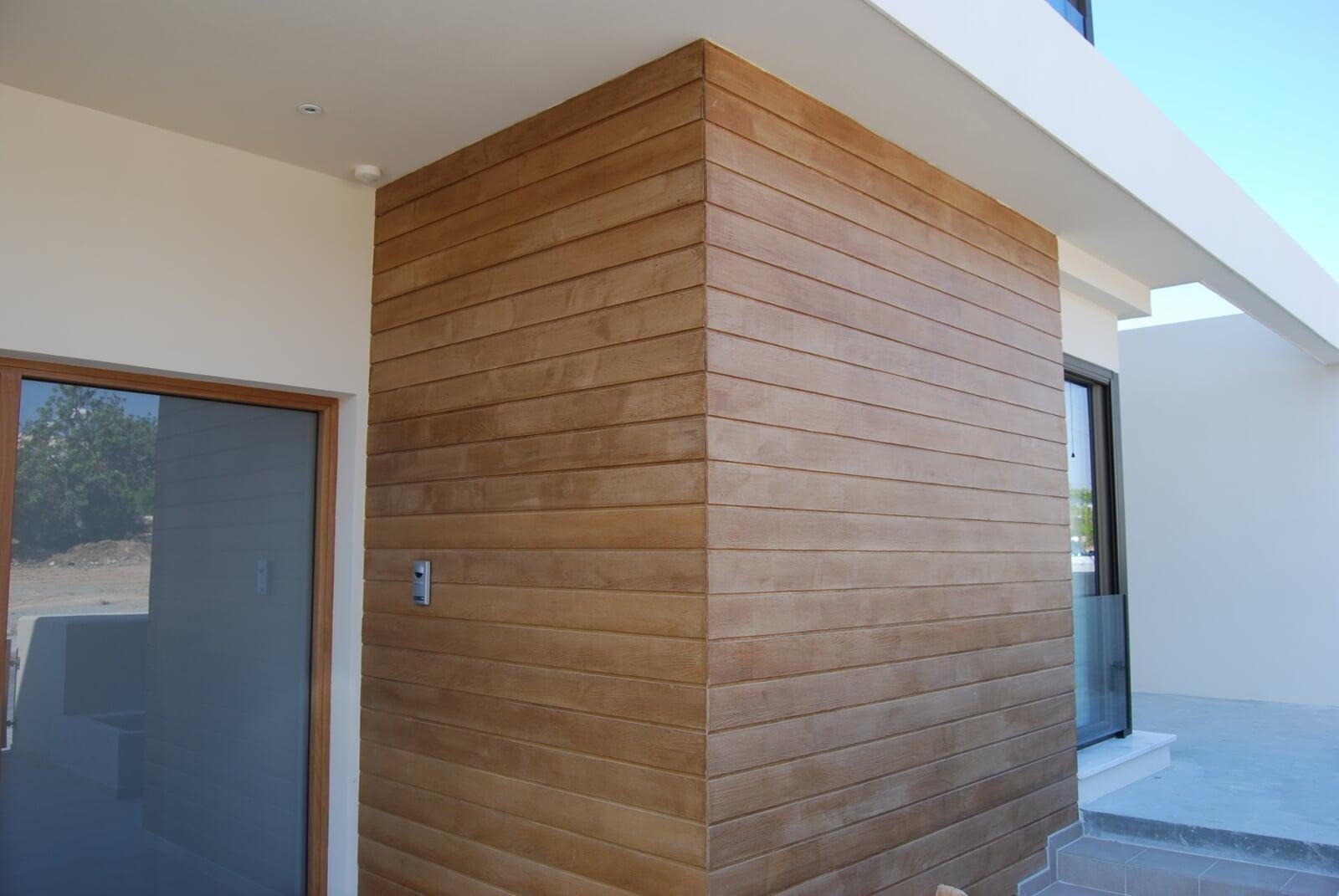

These planks are more 'traditional' and are used in external siding applications where the planks overlap the preceding rows. These planks come in Teak or Cassia or even smooth surface profiles and the Teak surface planks also come in coloured formats, see below.
The planks have various profiled edges and give a more 'modern' shiplap look to your siding application. Edge profiles are shown below. The shiplap range are primarily uncoloured format and can be painted pre-installation or on site, using any acrylic water based paint.
SHERA Square Cut Edge Planks

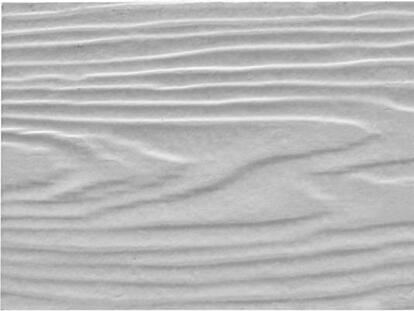

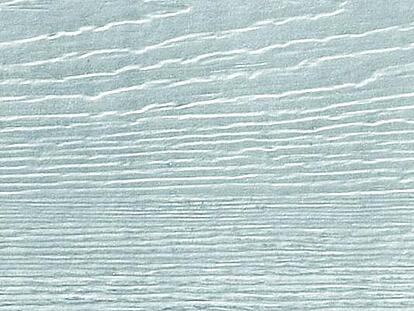

Various Surface Profiles
Various Colours
Wood Series Colour Range
Contemporary Colour Range
* Coloured planks are Teak profile only
SHERA Plank Light Blue and Light Yellow colours are for applications where a bright, summery appearance is required, for example beach houses, garden houses, summer houses and other types of buildings.

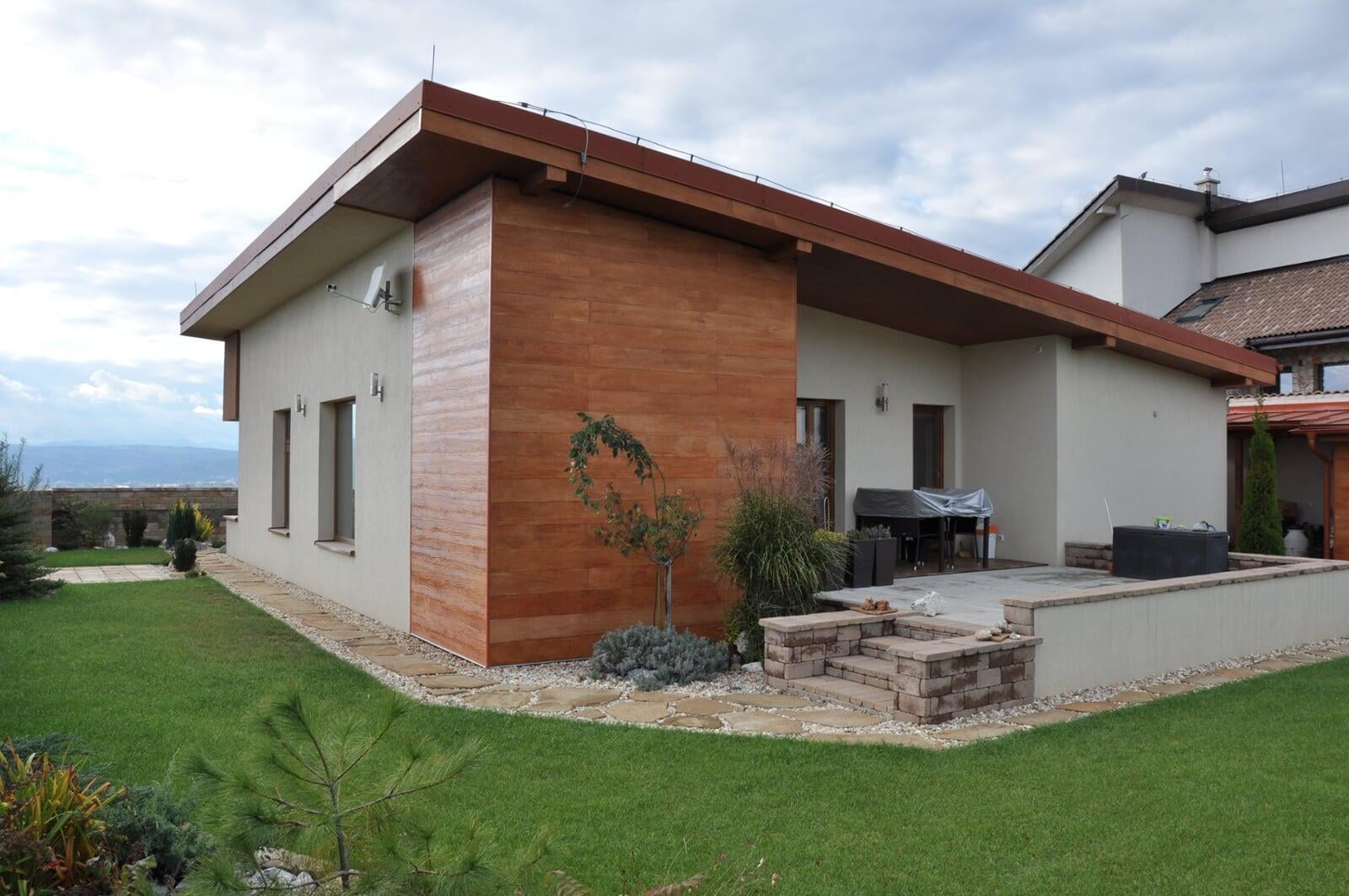

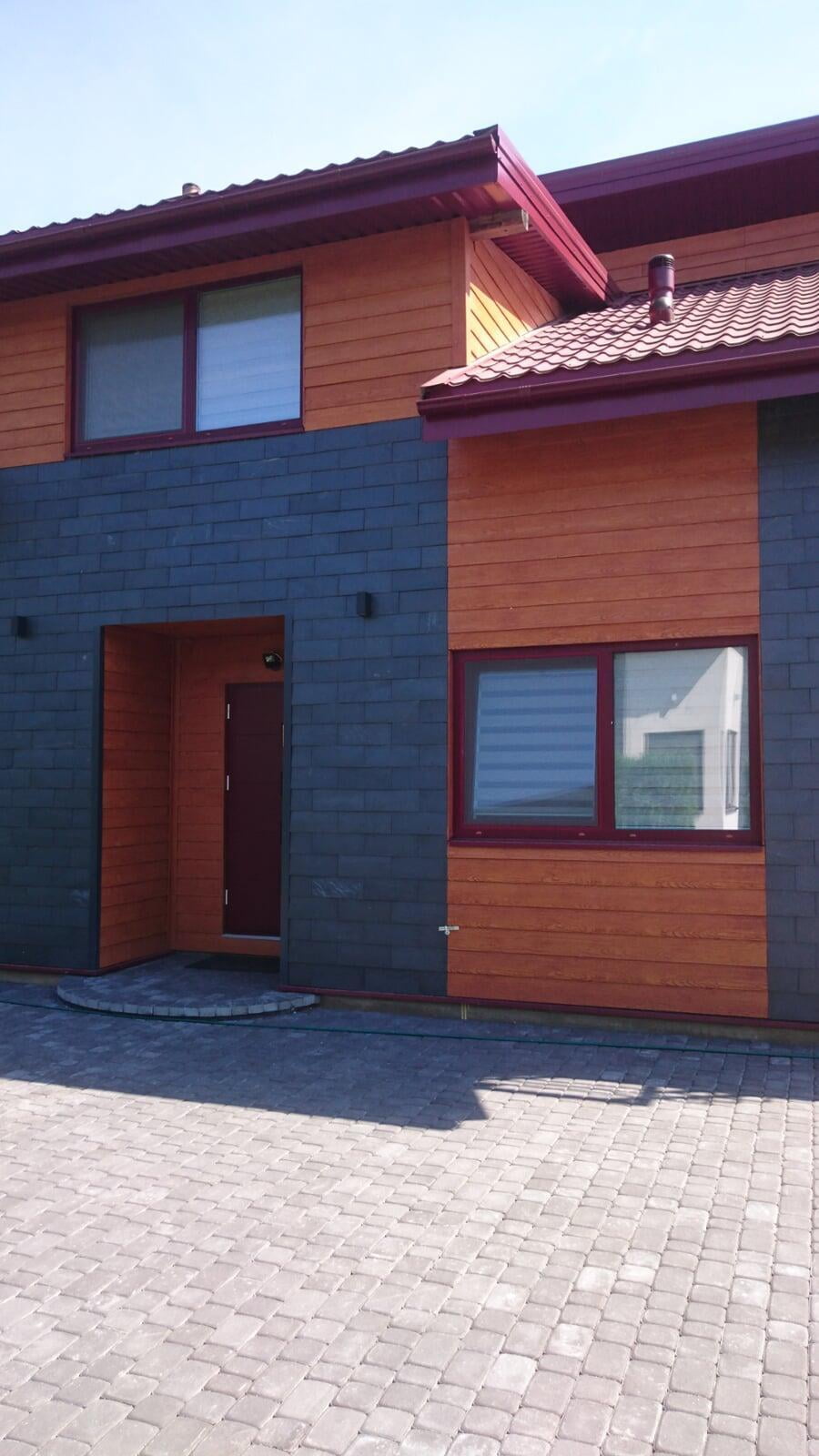

The Red Mahogany and Redwood colours are an addition to the wood range and give the planks an elegant, classic feel.
Grey Series
SHERA Plank now comes in a 'Grey Series' consisting of three different shades:
Light Grey
Modern Grey
Midnight Grey
Anthracite
SHERA Plank now comes in an 'anthracite' colour.
This modern looking, clean colour is particularly popular in western and northern Europe and gives any cladding application a clean, modern appearance.
Availability of SHERA Square Cut Planks
| Thickness (mm) | Width (mm) | Length (mm) | Weight (kg/pcs) | Profile | Colour Format |
|---|---|---|---|---|---|
| 8 | 150 | 3000 | 5.4 | Teak/Cassia | Uncoloured & Coloured |
| 8 | 200 | 3000 | 7.2 | Teak/Cassia/Smooth | Uncoloured & Coloured |
| 8 | 150 | 4000 | 7.2 | Teak/ Cassia | Uncoloured & Coloured |
| 8 | 200 | 4000 | 9.6 | Teak/Cassia | Uncoloured & Coloured |
SHERA Shiplap Planks
Various Edge Profiles
SHERA plank comes in various edge profiles suitable for different applications.
Croton
SHERA Shiplap siding in Croton profile is a straight forward, no nonsense style shiplap cladding pank for any exterior siding application.
Yellow Flame
SHERA's Yellow Flame shiplap siding comes in smooth or straight grain and now also comes in a Beech colour.
Jacaranda
SHERA Jacaranda Shiplap siding planks is an elegant, time tested profile for that beautiful, elegant exterior facade.
Modern Stagger
The Modern Stagger shiplap plank is as its name suggests, a modern looking siding plank that can be used on any exterior cladding application, private or commercial, for that ultra modern look.
Orchid Tree
The Orchid Tree siding plank is not a true 'shiplap' style but is an overlapping siding plank with one side in an elegant curved profile. For us on any exterior application to add that touch of class to your building.
Latest Colours for SHERA Shiplap Planks
SHERA's shiplap range now has a new colour in the 'Yellow Flame edge profile - Beech colour - with a straight grain surface profile that provides a more 'modern' look to the planks.
This new product is available in 150mm width and 3m length and is perfect for any modern siding application.

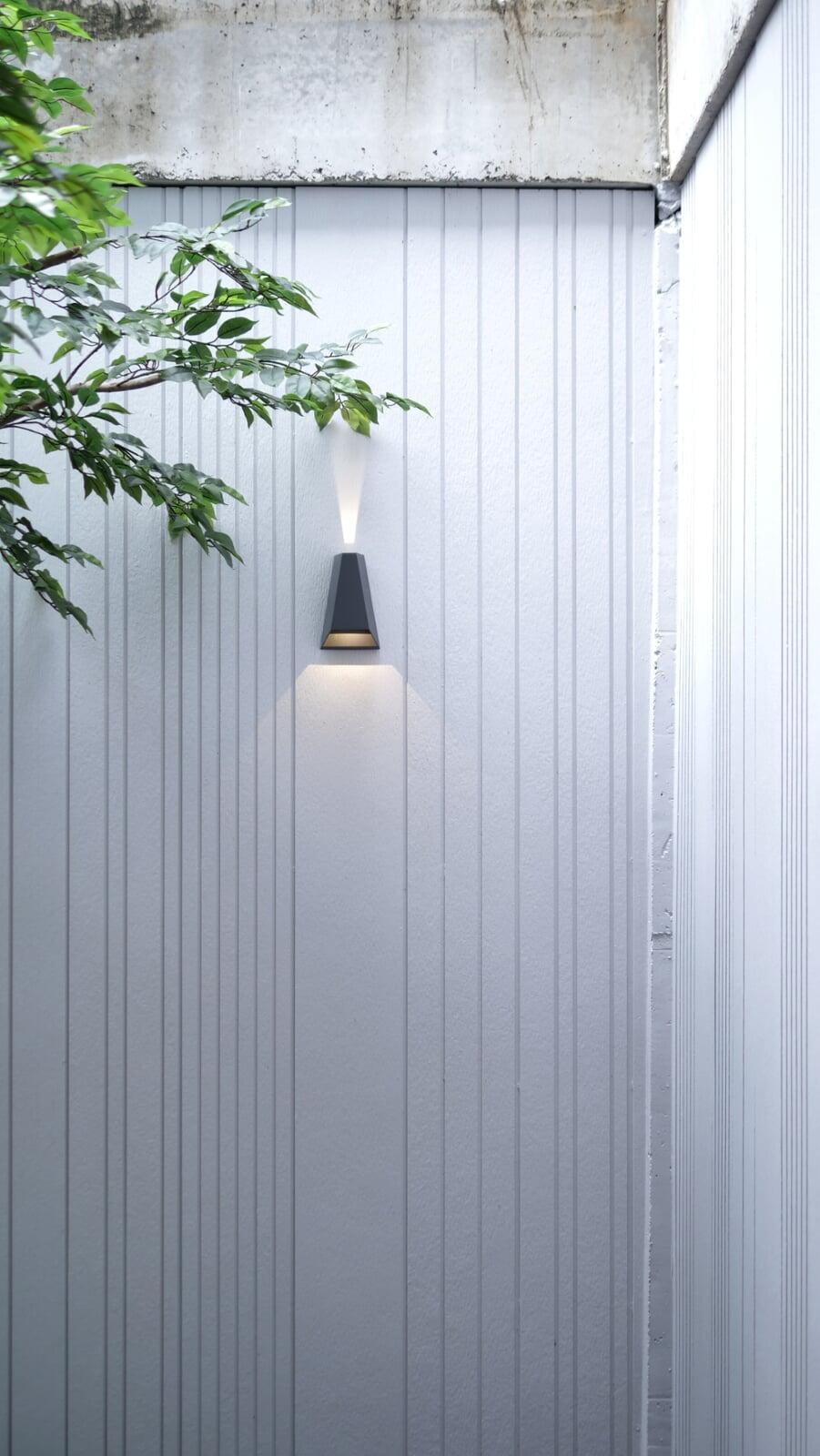

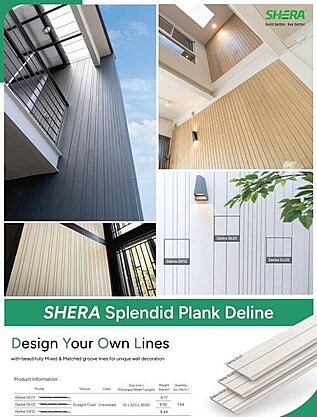

SHERA Shiplap Deline Range
SHERA Deline is a new, modern looking shiplap plank that comes in several surface textures, including smooth and straight grain wood profile.
The Deline range also comes in a variety of different 'groove' profiles as you can see on the left, which give your exterior siding application a modern, unique appearance.
And of course, the Deline plank range is fire resistant to min A2 standards so is the perfect accompaniment to your high rise decking application that requires external siding in a fire resistant material.
Size: 10mm x 220mm x 3000mm.
Surface Texture: straight grain or smooth.
Colour: uncoloured.

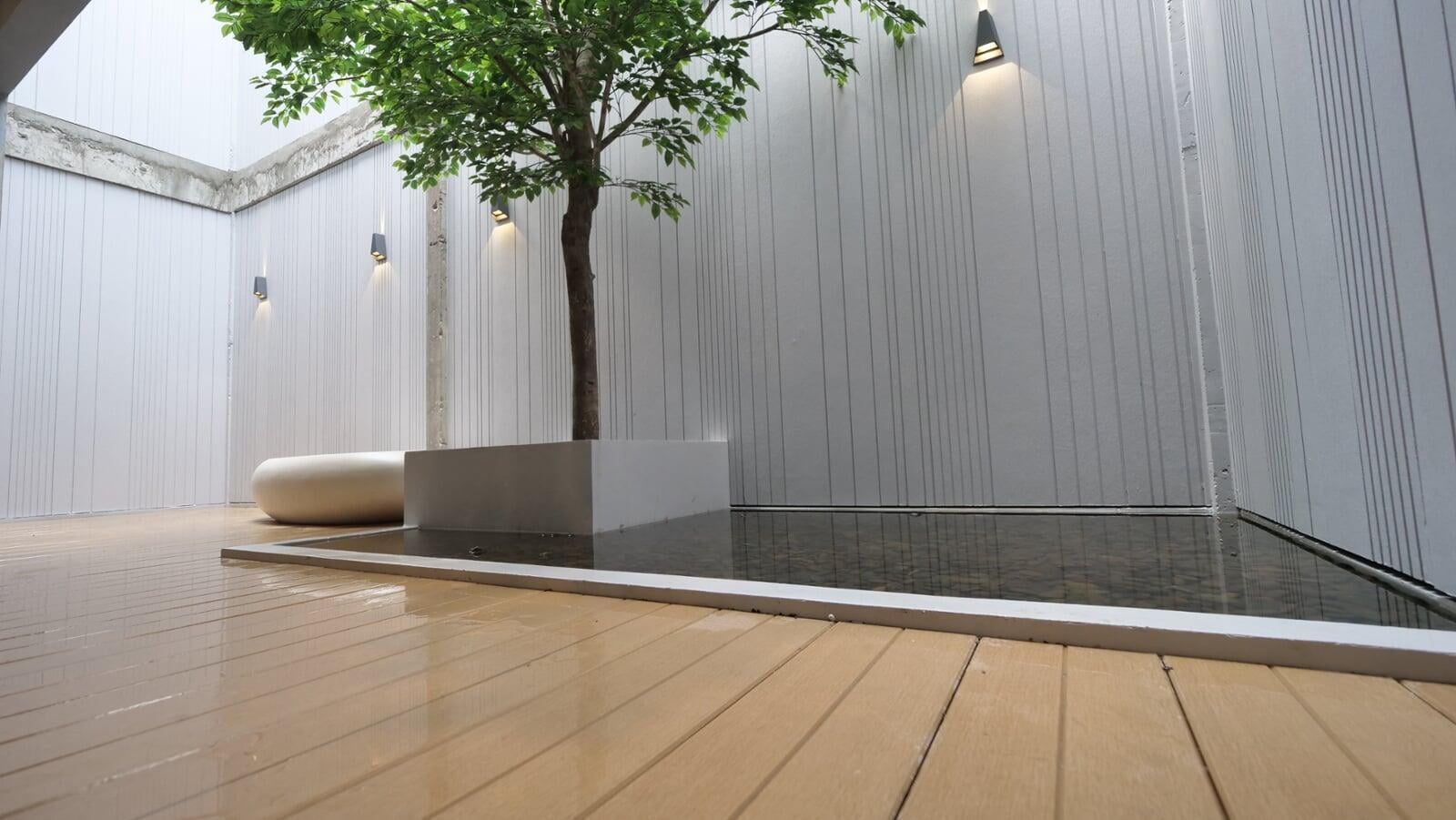

SHERA Shiplap Planks for Interior or Exterior Cladding
SHERA shiplap plank range are perfect for interior and exterior decorative cladding applications.
Availability of SHERA Shiplap Planks
| Edge Profile | Texture | Thickness (mm) | Width (mm) | Length (mm) | Weight (kg/pcs) | Colour Format |
|---|---|---|---|---|---|---|
| Orchid Tree | Cassia/Smooth | 10 | 150 | 3000 | 6.55 | Uncoloured |
| Croton | Cassia/Smooth | 10 | 150 | 3000 | 6.33 | Uncoloured |
| Yellow Flame | Cassia/Smooth | 10 | 150 | 3000 | 6.33 | Uncoloured & Coloured |
| Jacaranda | Cassia | 10 | 150 | 3000 | 6.10 | Uncoloured |
| Modern Stagger | Smooth | 10 | 100 | 3000 | 4.40 | Uncoloured |
| Smooth | 10 | 150 | 3000 | 6.60 | Uncoloured | |
| Smooth | 10 | 200 | 3000 | 8.80 | Uncoloured | |
| Smooth * | 10* | 300* | 3000* | 13.2 0* | Uncoloured |
* Made to order item
Standard References
| Standard | Category | Title |
|---|---|---|
| ATSM | ASTMC1185, C1186-91 | Flat Non-Asbestos Fibre-Cement sheets |
| ISO | ISO 8336: 1993 | Fibre-Cement Flat sheets |
| AS/NZS | 2908.2: 2000 | Cellulose Cement Product Part2: Flat sheets |
| JIS | A5430 – 1995 | Fibre Reinforced Cement Boards |
| EC Conformity | EN13501-1:2018 EN 12467:2012 + A2:2018 | Fibre-Cement Flat sheets |
Accreditations
| Certification | Category | Title |
|---|---|---|
| Green Label / Singapore | ASTM D5116-06 | Emission Test |
| Carbon Label / Thailand | Carbon Reduction |
Technical Data
| Physical Properties | |
|---|---|
| Thickness Tolerance | +6% |
| Density | 1350 + 50 kg/m3 |
| Flexural Strength (wet avg) | > 7 MPa |
| Modulus of Elasticity (wet) | 3000 MPa |
| Water Absorption | < 35% |
| Moisture Content | < 15% |
| Water Tightness | Pass |
| pH Value | 7-8 |
| Thermal Conductivity | 0.15 W/m.K |
| Acoustic Insulation | STC = 30 dB (6 mm single board) STC = 50 - 60 dB (10 mm composite wall) |
| Moisture Movement | + 0.04% |
| Length Change Due to Water Absorption | < 0.10% |
| Fire Resistance Properties | |
| Ignitibility | Pass |
| Fire Propagation Index | I = 0.4 |
| Surface Spread of Flame | Class 1 |
| Reaction to Fire Classification | A1 |
| Combustibility | Non-Combustible |
| Durability Properties | |
| Freeze / Thaw Resistance | < 0.75 |
| Warm Water Resistance | < 0.75 |
| Heat / Rain Resistance | No cracks or structural alteration |
| Soak / Dry Resistance | < 0.75 |
| Product Classification | Category A |
Downloads
Applications

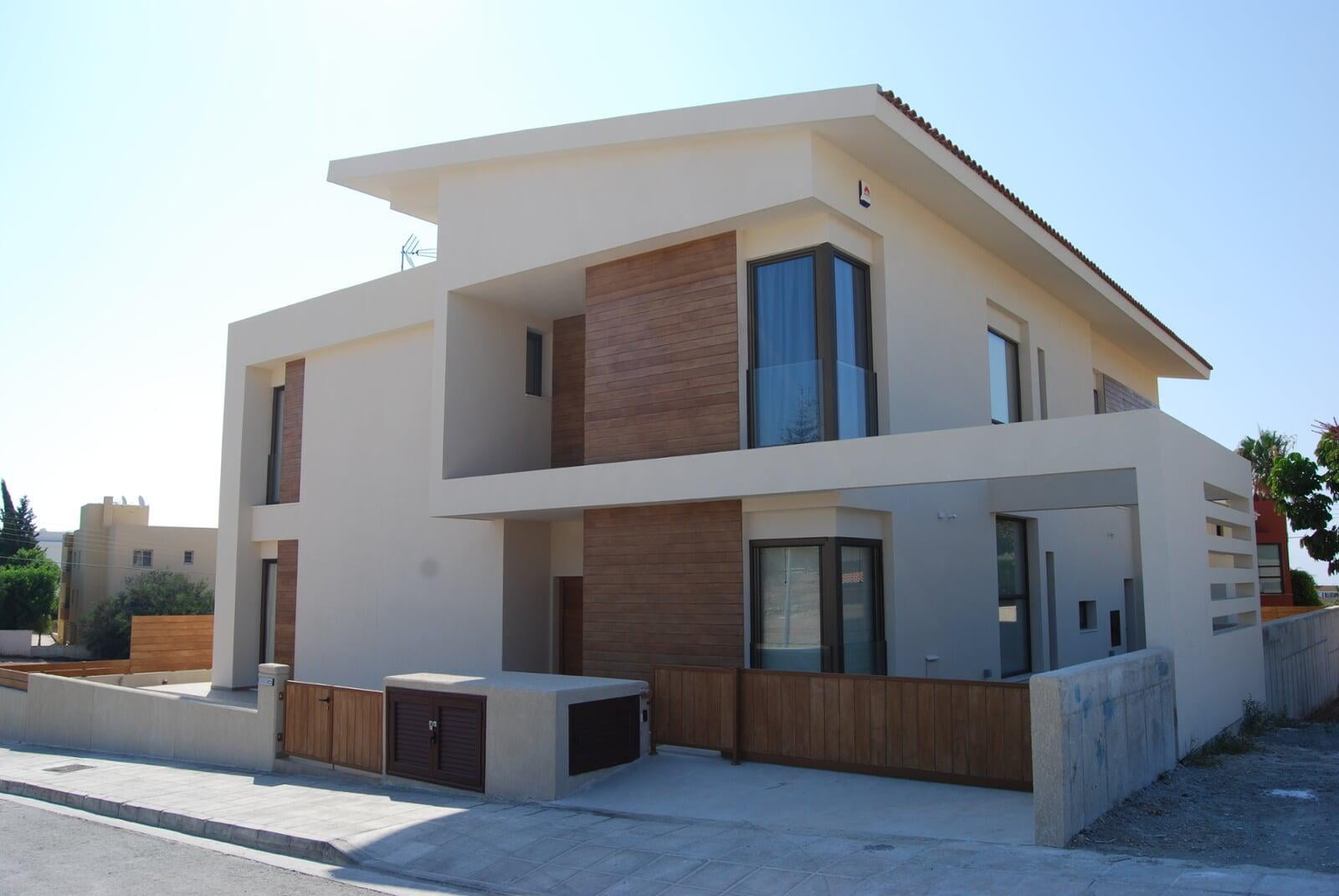

SHERA Planks - both square cut edge and shiplap style - can be used in a wide variety of building applications:
