  • SHERA Infillwall - a Rapid Wall Construction System

    SHERA Board is a key component in our rapid, lightweight wall construction system, SHERA Infillwall

SHERA InfillWall System

SHERA Infillwall is a rapid wall construction system that utilises our tough fibre cement SHERA Board together with a steel frame system and  lightweight infill concrete for use in internal or external walls on high rise applications.

A Rapid Wall Construction System

SHERA Infillwall is a fast track wall contruction system using SHERA fibre cement board

SHERA's Infillwall system is up to 30% faster and less labour intensive than traditional masonry construction methods. Electrical and plumbing work can be done in parallel without damaging the walls.


The installation process is also far cleaner than traditional wet construction methods as the lightweight concrete is pumped into the wall through a cavity inlet, saving construction and cleanup time.


SHERA Infillwall is also thinner than traditional masonry walls with a width of 8.7cm, saving space on interior rooms. This makes it an ideal interior wall solution for high rise condominiums, hotels and residential apartments.



Fast Track Wall Construction with SHERA Infillwall

SHERA InfillWall system is a fast, clean and reliable wall system perfect for rapid installation.

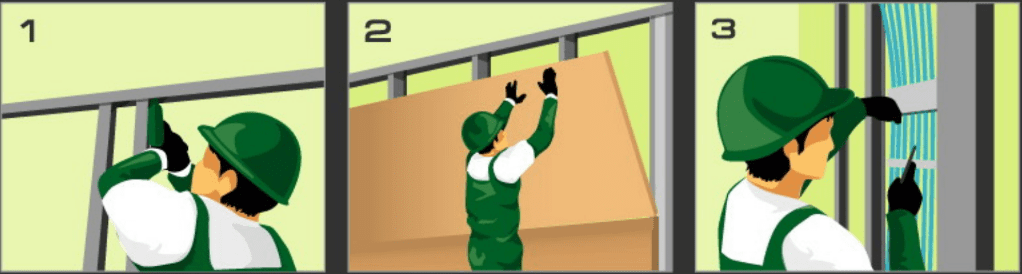

1. Install the steel frame.

2. Apply one side of SHERA Board in the relevant thickness based on the application requirements.

3. Install electrical wiring and plumbing.

SHERA Infillwall is a rapid construction wall system using SHERA Board

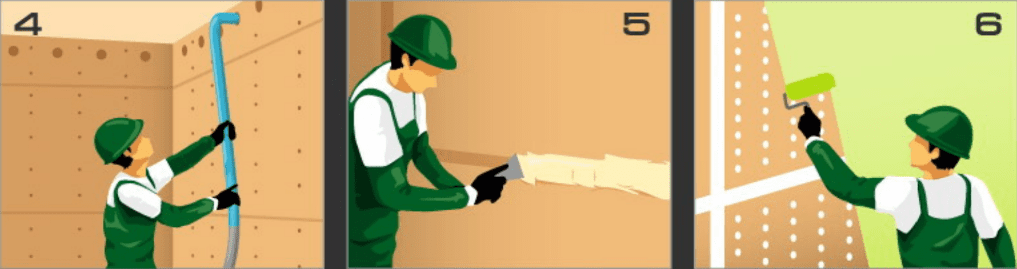

4. Pump lightweight concrete into wall cavity.

5. Seal joints as applicable using SHERA Fibre Mesh Tape and SHERA Jointing Compound.

6. Paint using any acrylic water based paint.

SHERA Board is a fibre cement boards used in our Infillwall lightweight wall solution

Lightweight, Strong & Fire Resistant

SHERA Board is a fibre cement wall board used in rapid wall construction systems

Strong and Resistant to Impact

The combination for tough fibre cement boards and the lightweight concrete infill results in an incredibly strong wall solution.


Increased Fire Resistance

The combination of materials results in impressive fire resistance capabilities making SHERA Infillwall a suitable option for firewall applications.

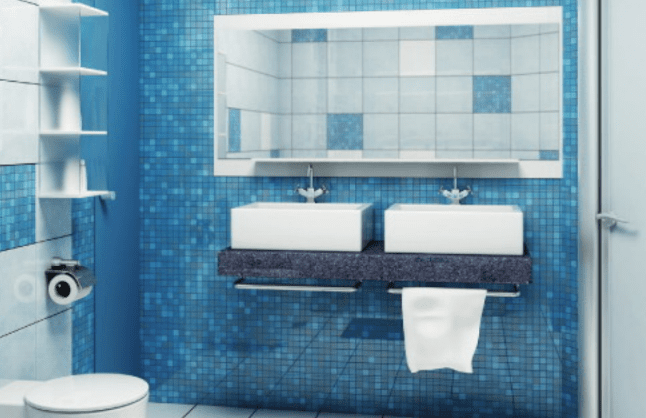

SHERA infillwall being used in a wet area application

Perfect for Wet Area Applications

All kinds of interior wall applications where there are large areas of walling such as partition walls in high rise buildings such as hotels/malls or condominiums. It is also perfectly suited to also wet and high moisture areas and rooms such as public bathrooms/toilets/kitchens allowing you to rapidly install all decorative materials directly on the wall panels, such as tiles, cupboards and other decor.

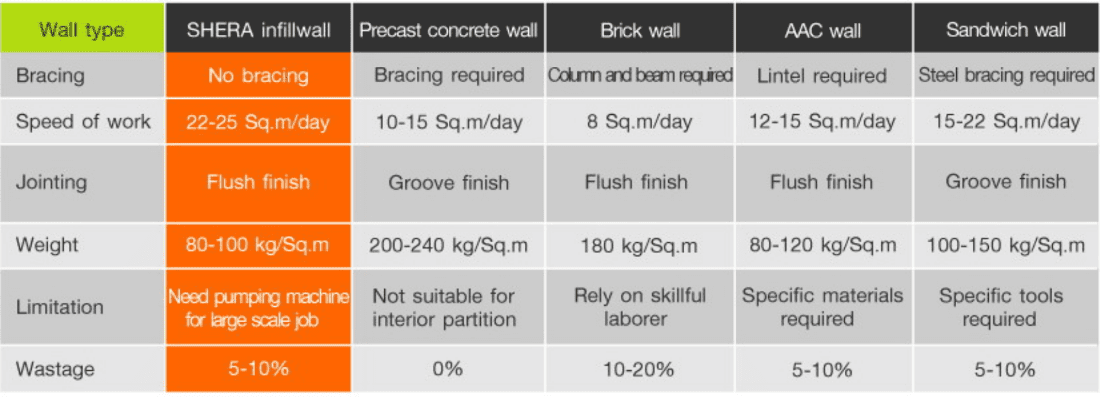

Comparison With Other Wall Systems

SHERA Infillwall is a faster and more efficient wall system using SHERA Boards

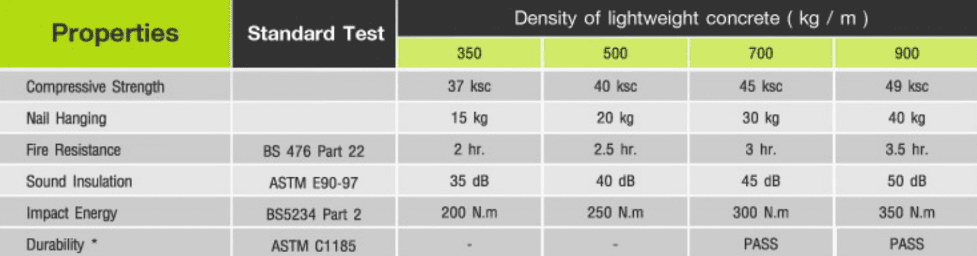

SHERA Infillwall Technical Details

SHERA Infillwall technical data

SHERA Board
